Illuminate Your Missions

Name: DJI AL1 Spotlight
Brand: SPARK Robotics
SKU: dji-al1-spotlight

Powerful, Versatile Illumination

DJI AL1 Spotlight

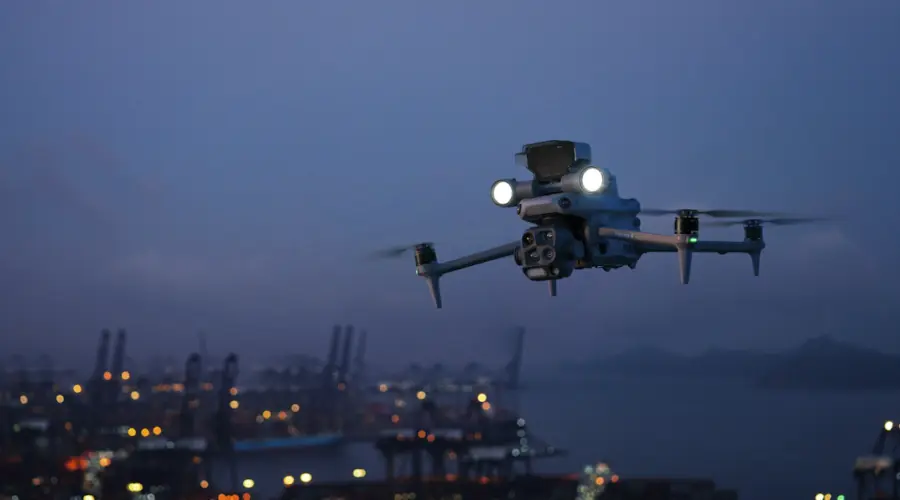

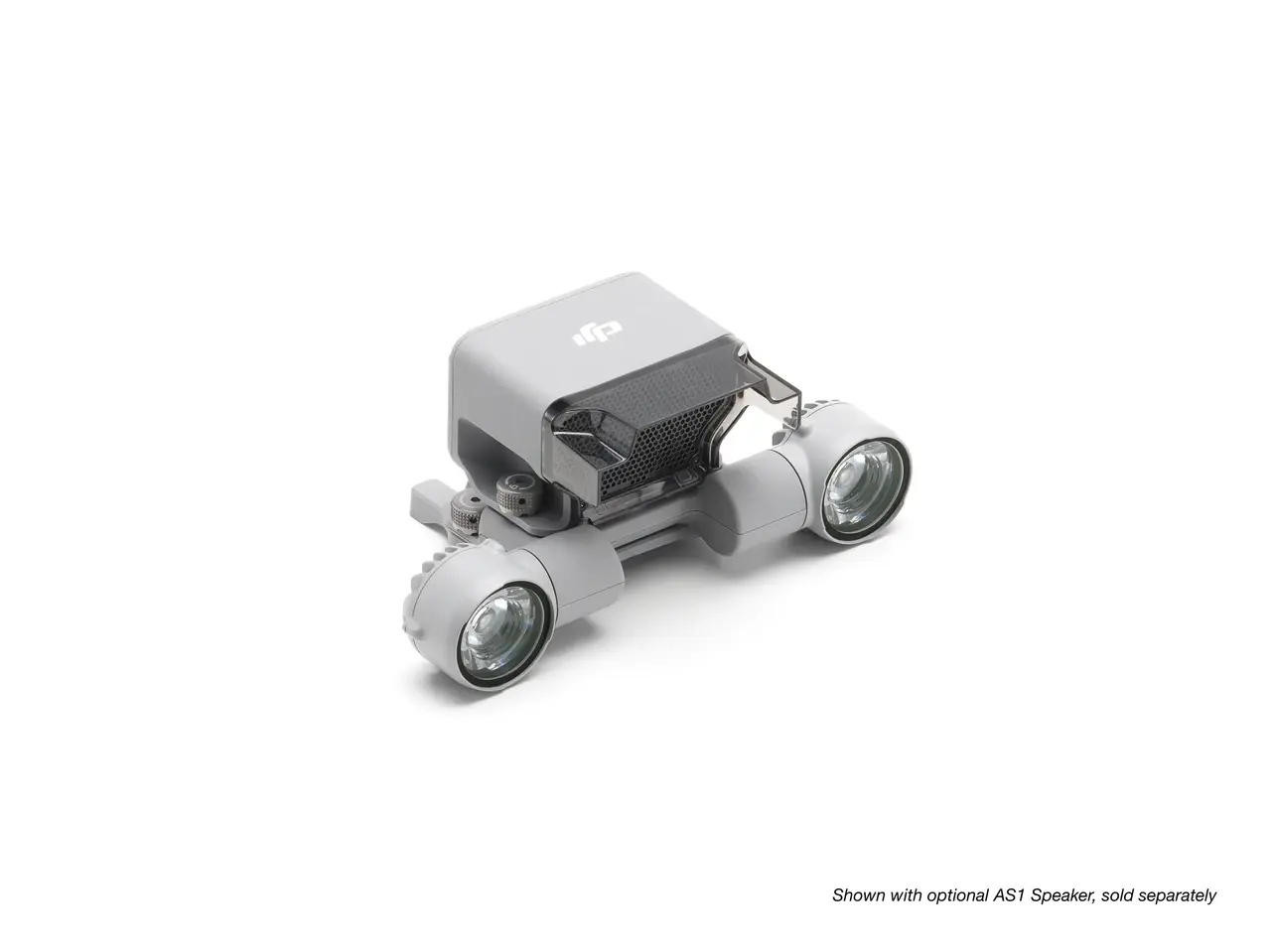

The DJI AL1 Spotlight supports two modes: always-on and strobe. It clearly illuminates subjects from distances of up to 100 meters and intelligently links with the gimbal following the camera's movements to ensure the illuminated area matches the camera's field of view at all times. A wide FOV lighting mode expands coverage when operating in wide-angle mode. The DJI AL1 Spotlight and its companion speaker can be used independently or in combination, meeting the needs of a wider range of operational scenarios.

In the Box:
-Spotlight × 1
-Spare Screws × 2
-Hex Key × 1

Compatibility:
Support for use with DJI Matrice 4 Series aircraft.

Product

Showcase

Features

Specification

Reach DJI AL1 Spotlight Datasheet

Weight 99 g (including bracket) Approx. 91 g (excluding bracket)

Dimensions 95×164×30 mm (L×W×H, including bracket) 79×164×28 mm (L×W×H, without bracket)

Max Power 32 W

Illuminance 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters

Effective Illumination Angle 23° (10% relative illuminance)

Effective Illumination Area 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode) 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)

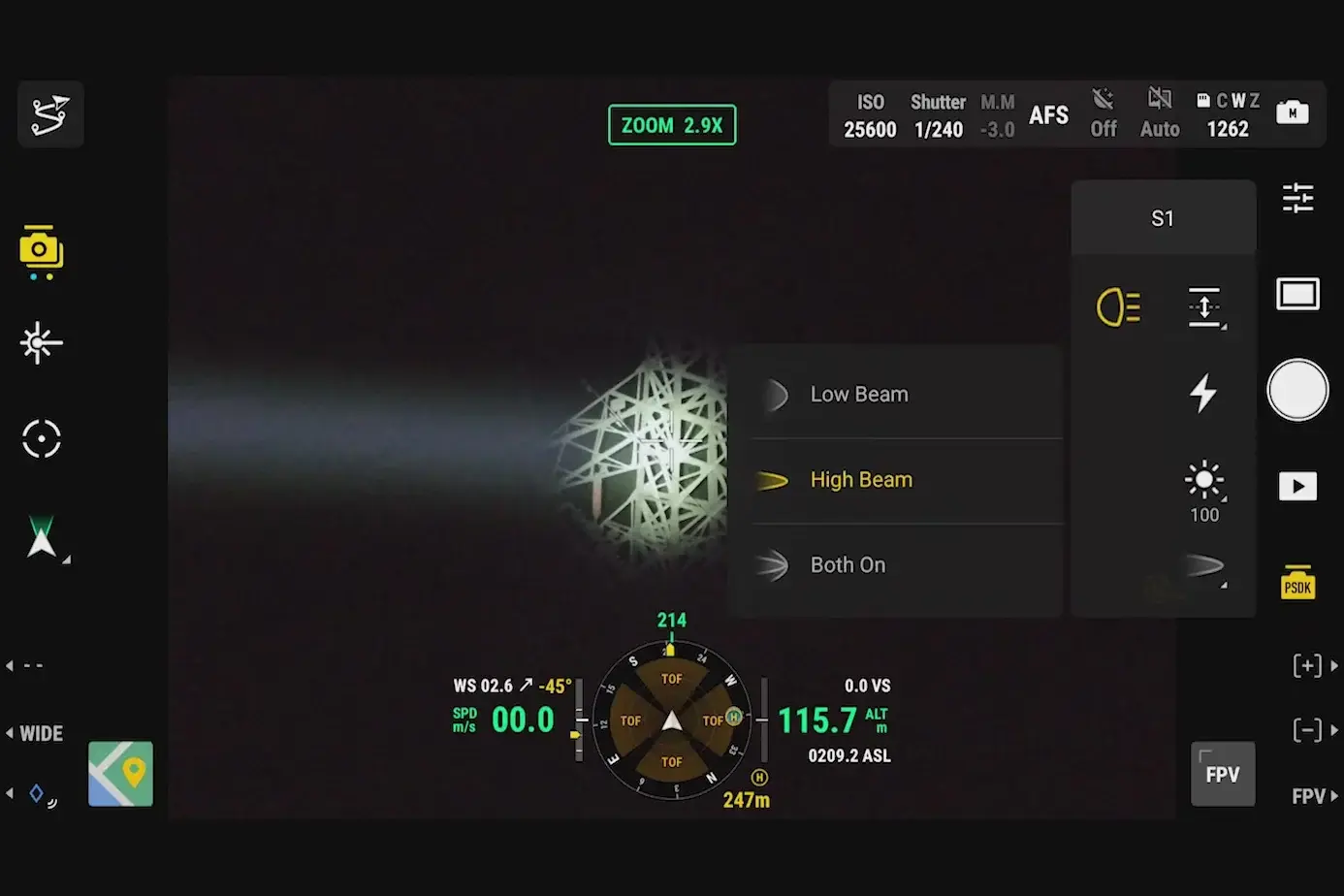

Modes Always-on and strobe

Gimbal Mechanical Range (Tilt) -135° to 45°

Gimbal Controllable Range (Tilt) -90° to 35°

Max Control Speed (Tilt) 120°/s

Gimbal Alignment Accuracy ±0.1°

Operating Temperature -4° to 122° F (-20° to 50° C)

Mounting Method Quick-release hand-tightened screws
