Dynamic Aerial Delivery

Name: DJI FlyCart 30
Brand: SPARK Robotics
SKU: dji-flycart-30

Heavy Payloads, Long Distances

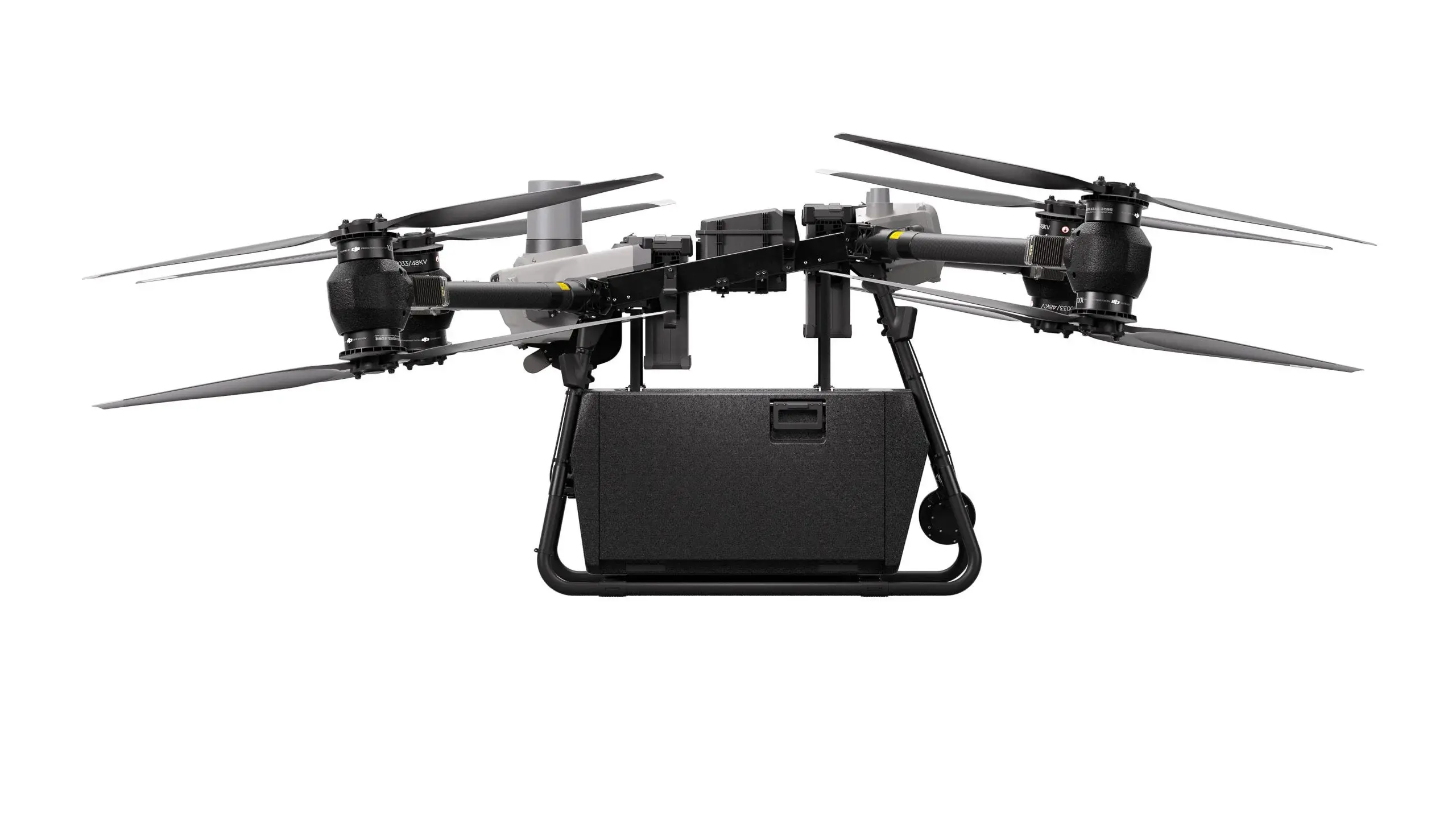

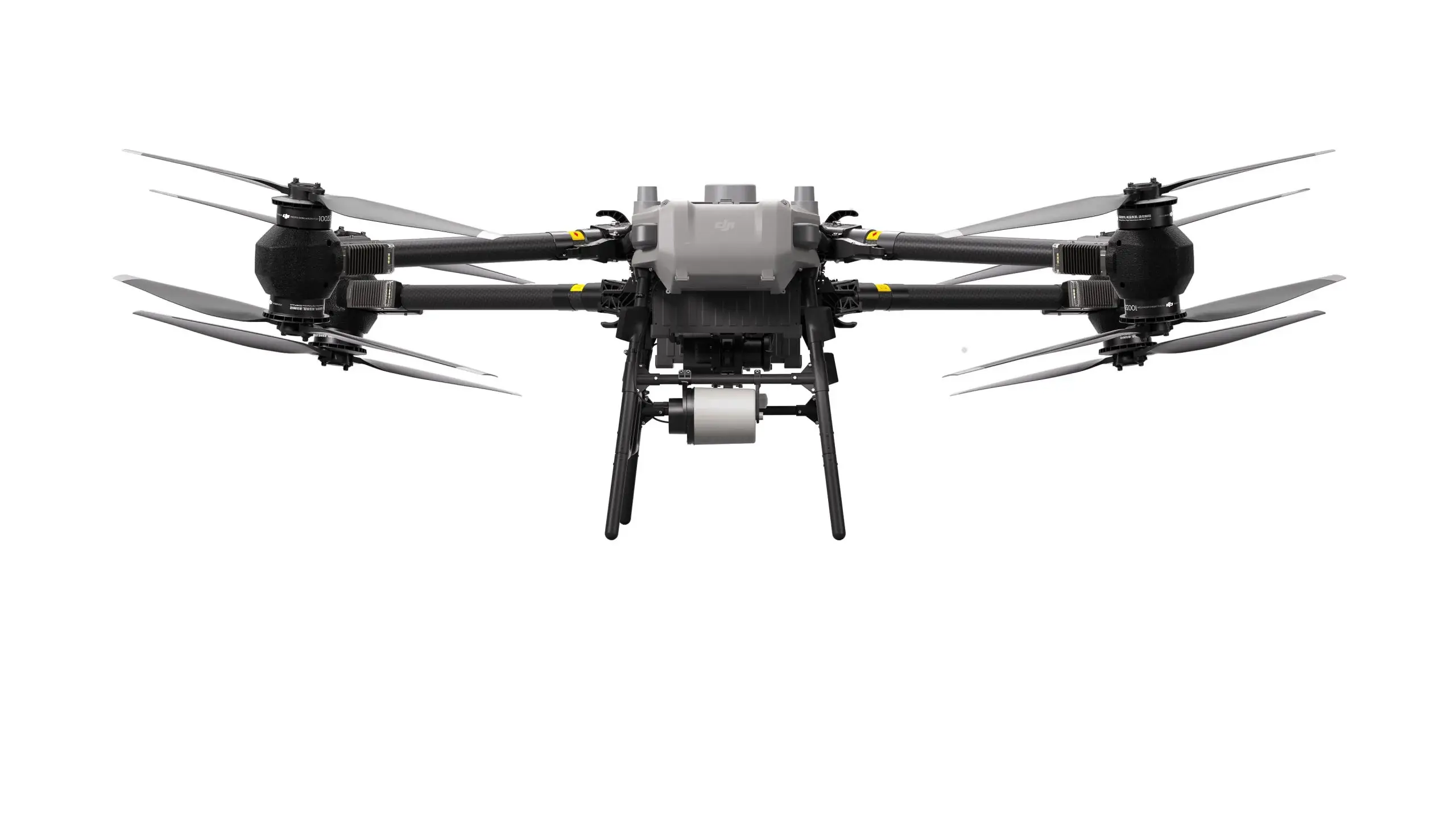

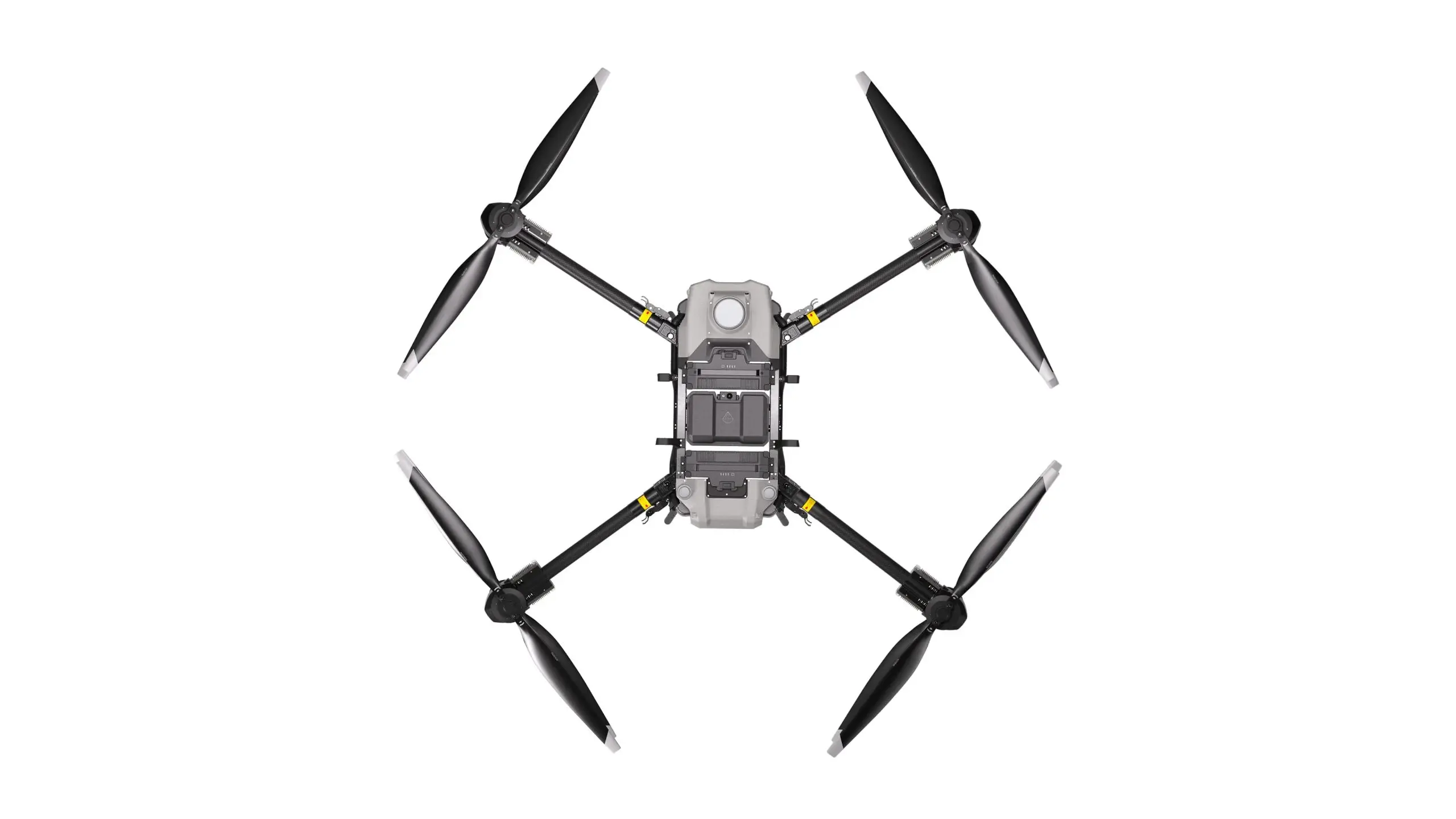

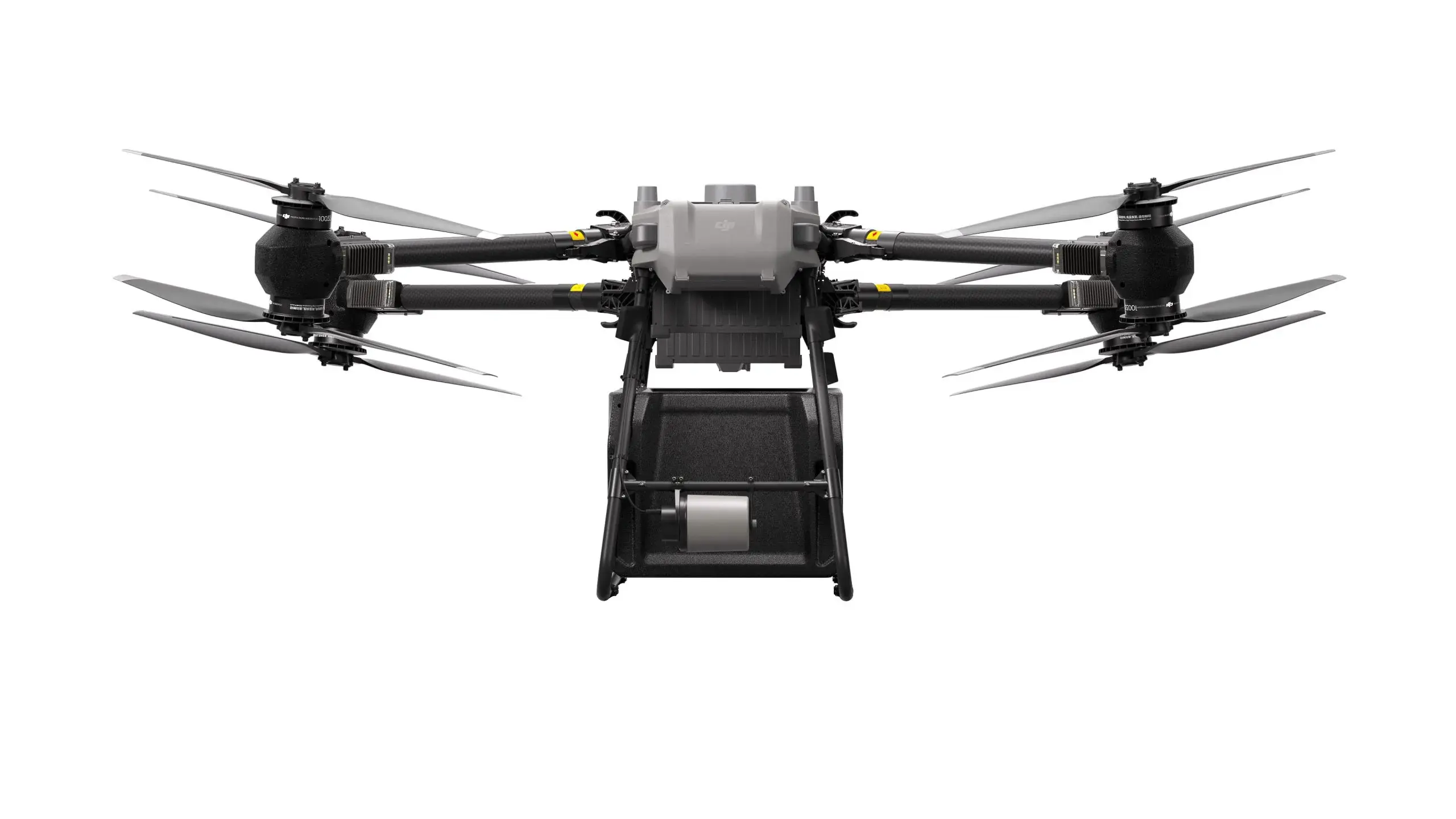

DJI FlyCart 30

DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.

Product

Showcase

Features

Specification

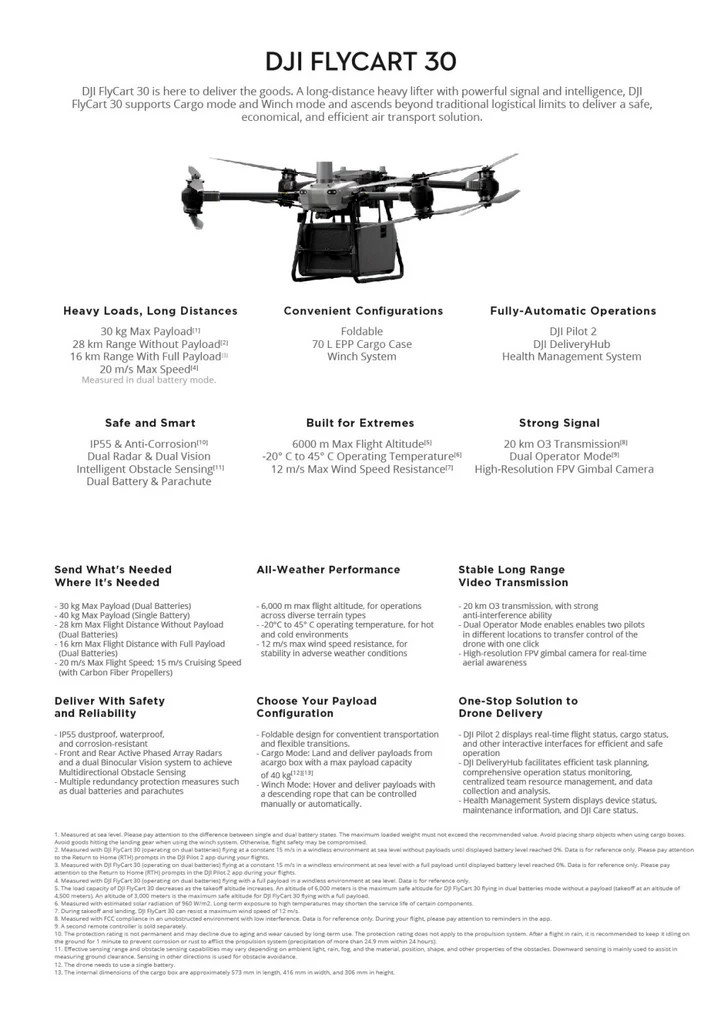

Reach DJI FlyCart 30 Datasheet

231.07 KB

Weight 42.5 kg (without battery) 65 kg (with two DB2000 batteries)

Max Takeoff Weight 95 kg (with cargo at sea level）

Dimensions 1590 x 1900 x 947 mm (LxWxH) (arms unfolded, propellers folded) 2800x3085x947 mm (LxWxH) (arms & propellers unfolded) 1115x760x1027 mm (LxWxH) (arms & propellers folded)

Hovering Endurance (empty weight, with max battery capacity) 29 mins (dual battery mode) 15 mins (single battery mode)

Hovering Endurance (max weight, with max battery capacity) 18 mins (30 kg weight load, dual battery mode) 8 mins (40 kg weight load, single battery mode)

Max Flight Distance (empty weight, with max battery capacity) 28 km (dual battery mode) 12 km (single battery mode)

Max Flight Distance (max weight, with max battery capacity) 16 km (30 kg weight load, dual battery mode) 8 km (40 kg weight load, single battery mode)

Max Flight Time (max weight, with max battery capacity) 18 mins (30 kg weight load, dual battery mode) 9 mins (40 kg weight load, single battery mode)

Operating Temperature -20° to 45° C

RTK/GNSS Operating Frequency RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2 GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1

Max Horizontal Speed 20 m/s

Max Flight Altitude 6000 m (without payload)

Max Descent Speed 3 m/s (vertical) 5 m/s (tilted)

Max Wind Speed Resistance 12 m/s
