Robust Drone Specially Designed for DJI Dock 3

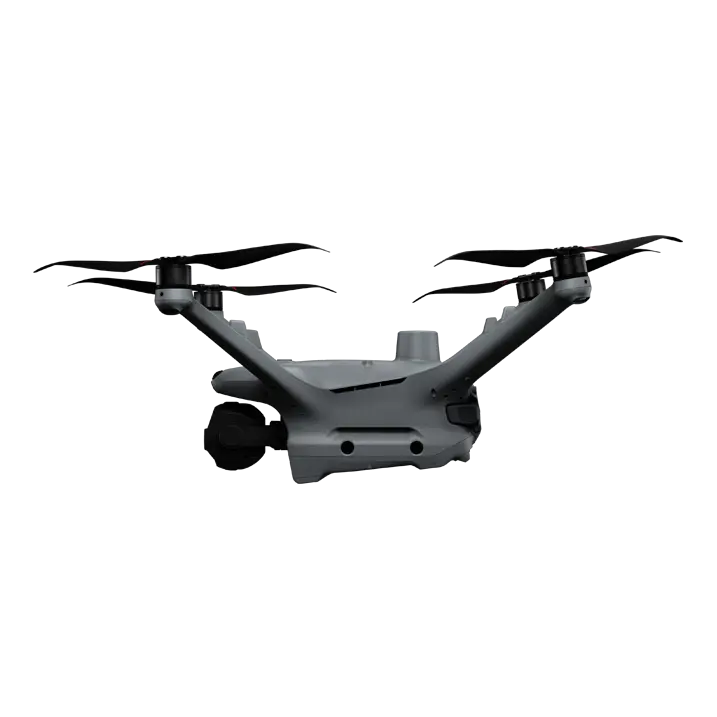

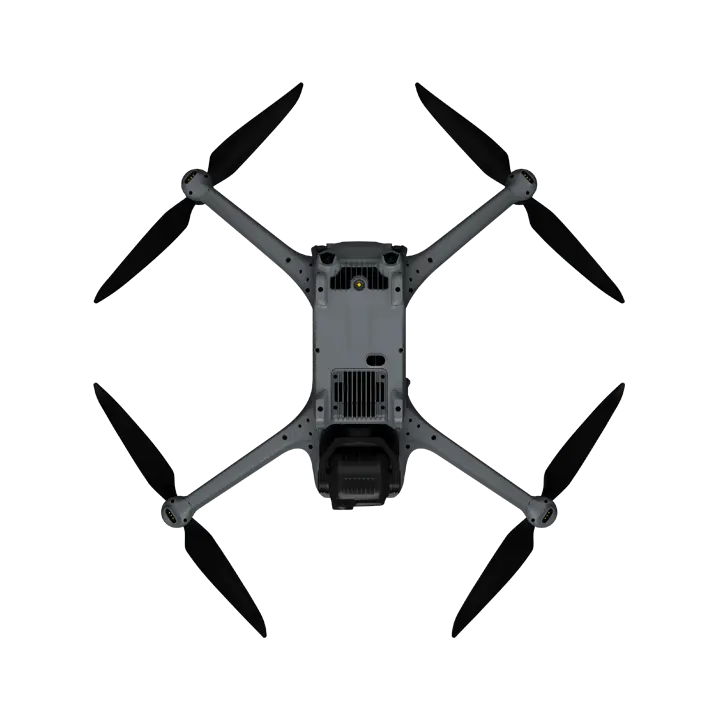

DJI Matrice 4D Series

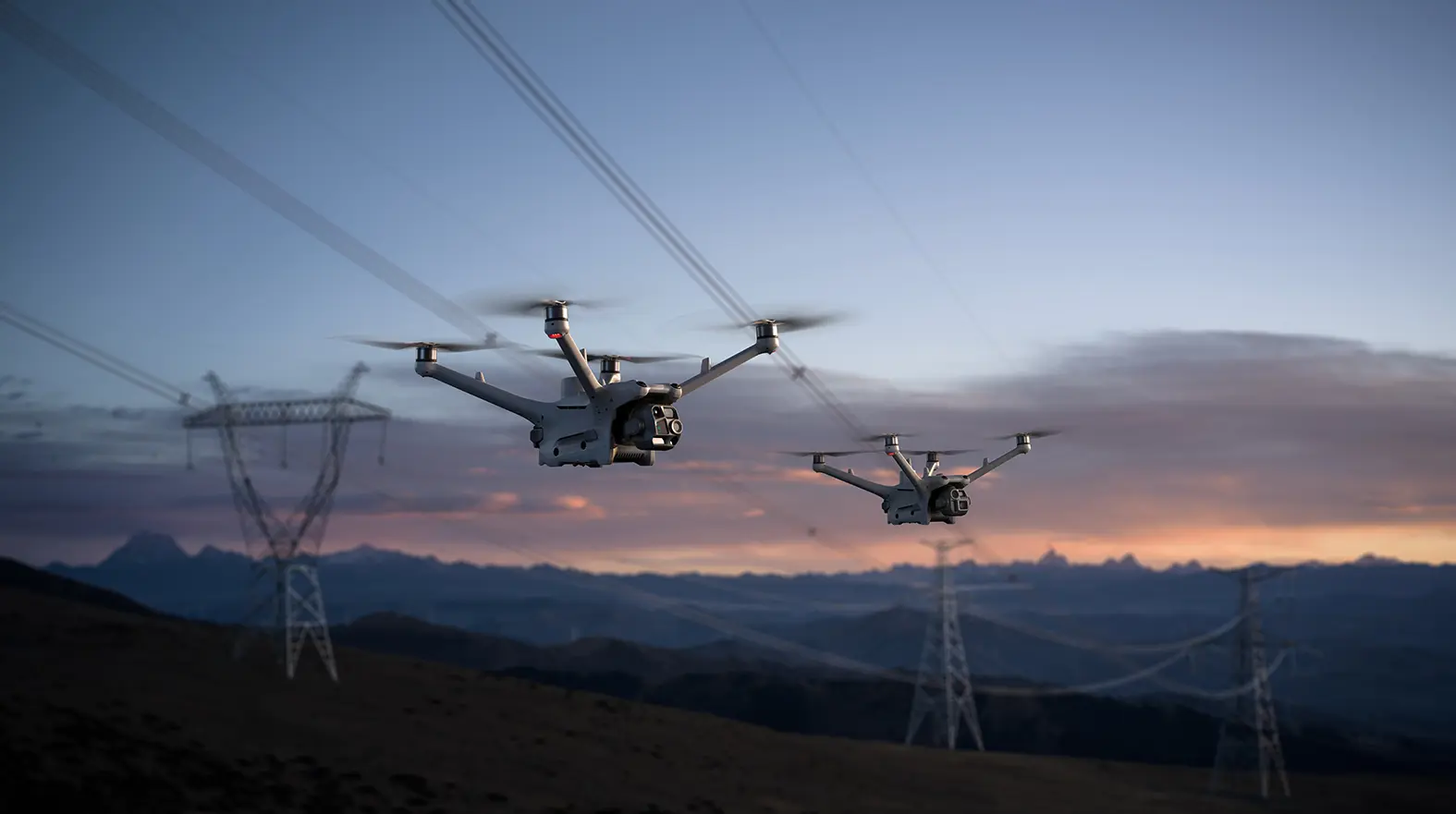

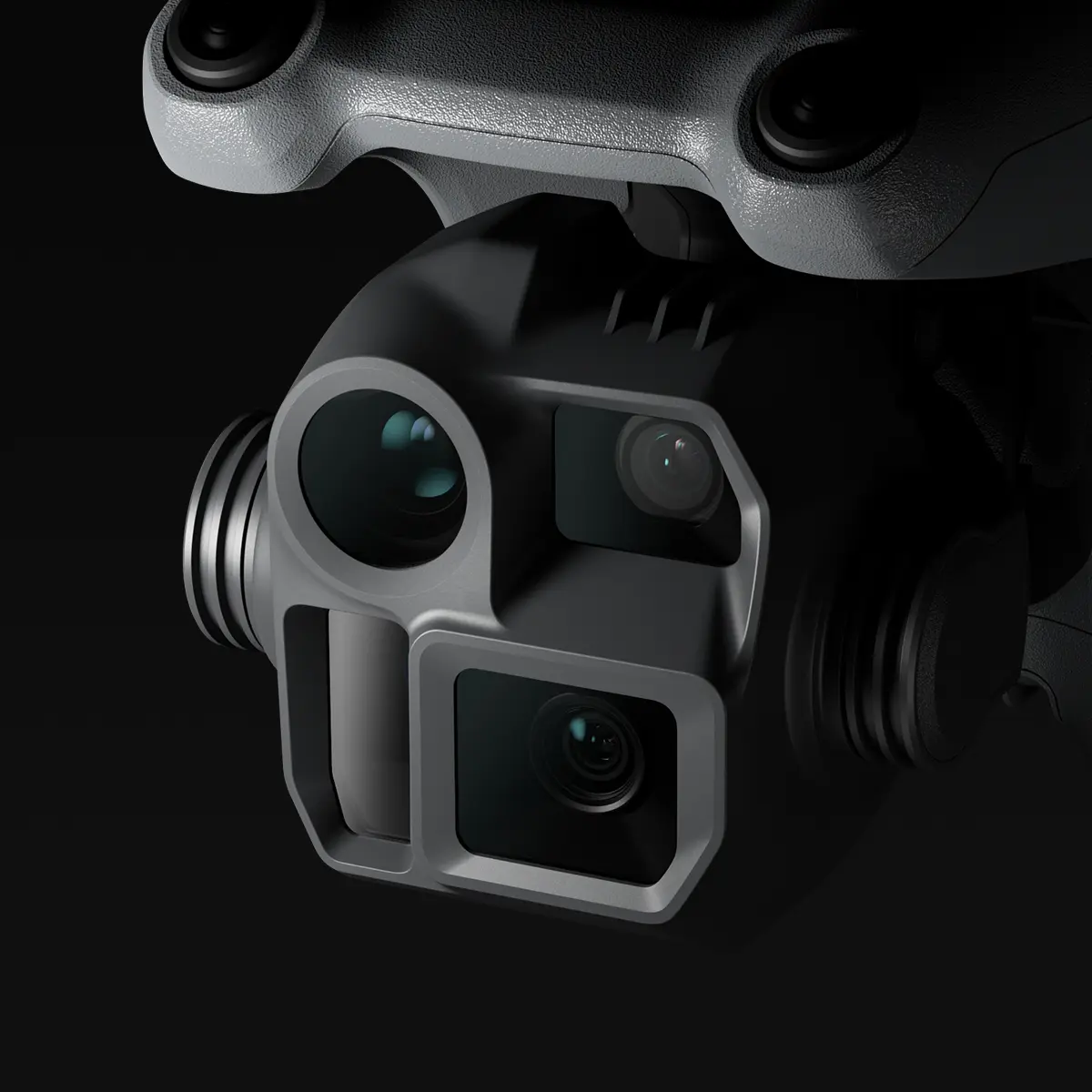

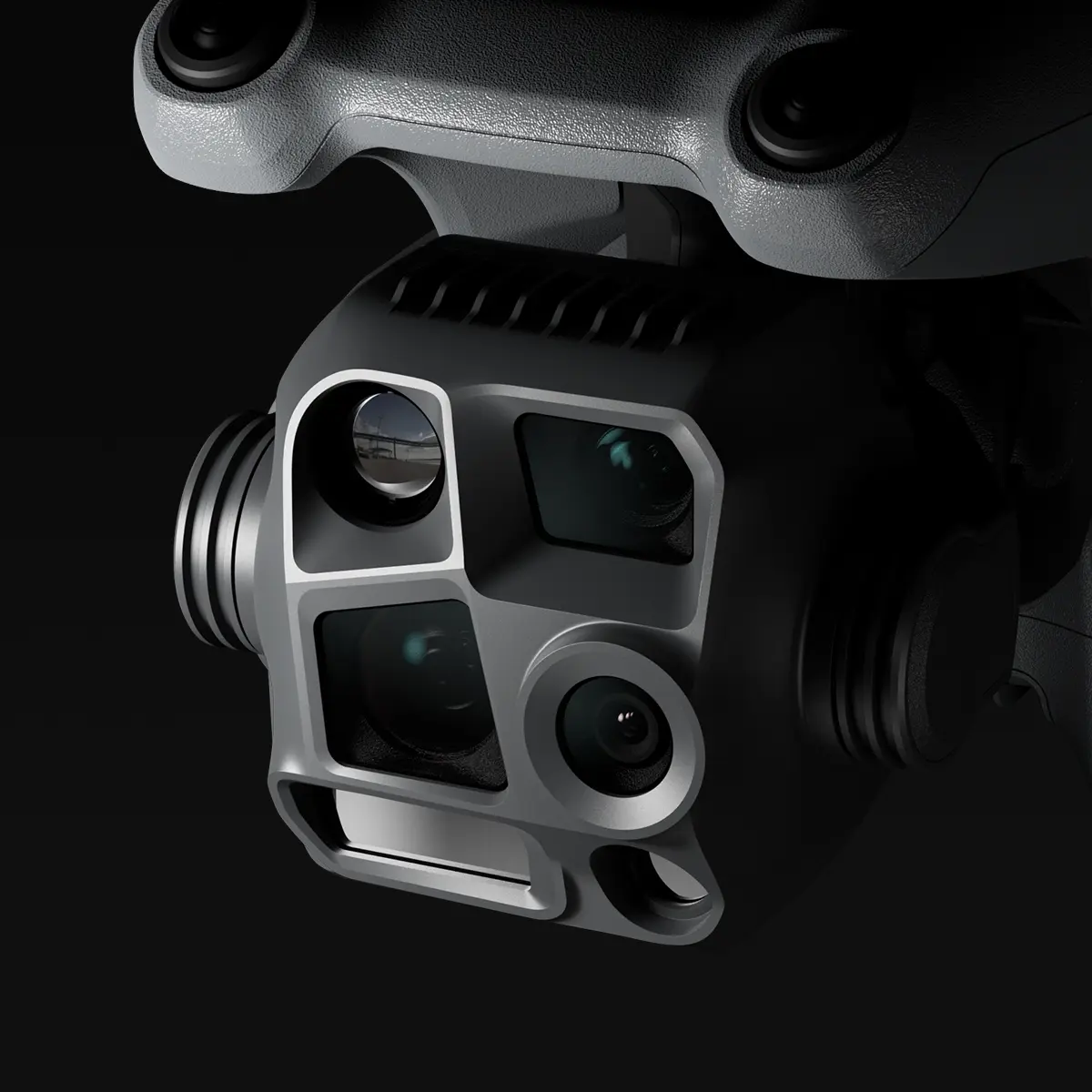

The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

Product

Showcase

Features

Specification

Reach DJI Matrice 4D Series Datasheet

166.96 KB

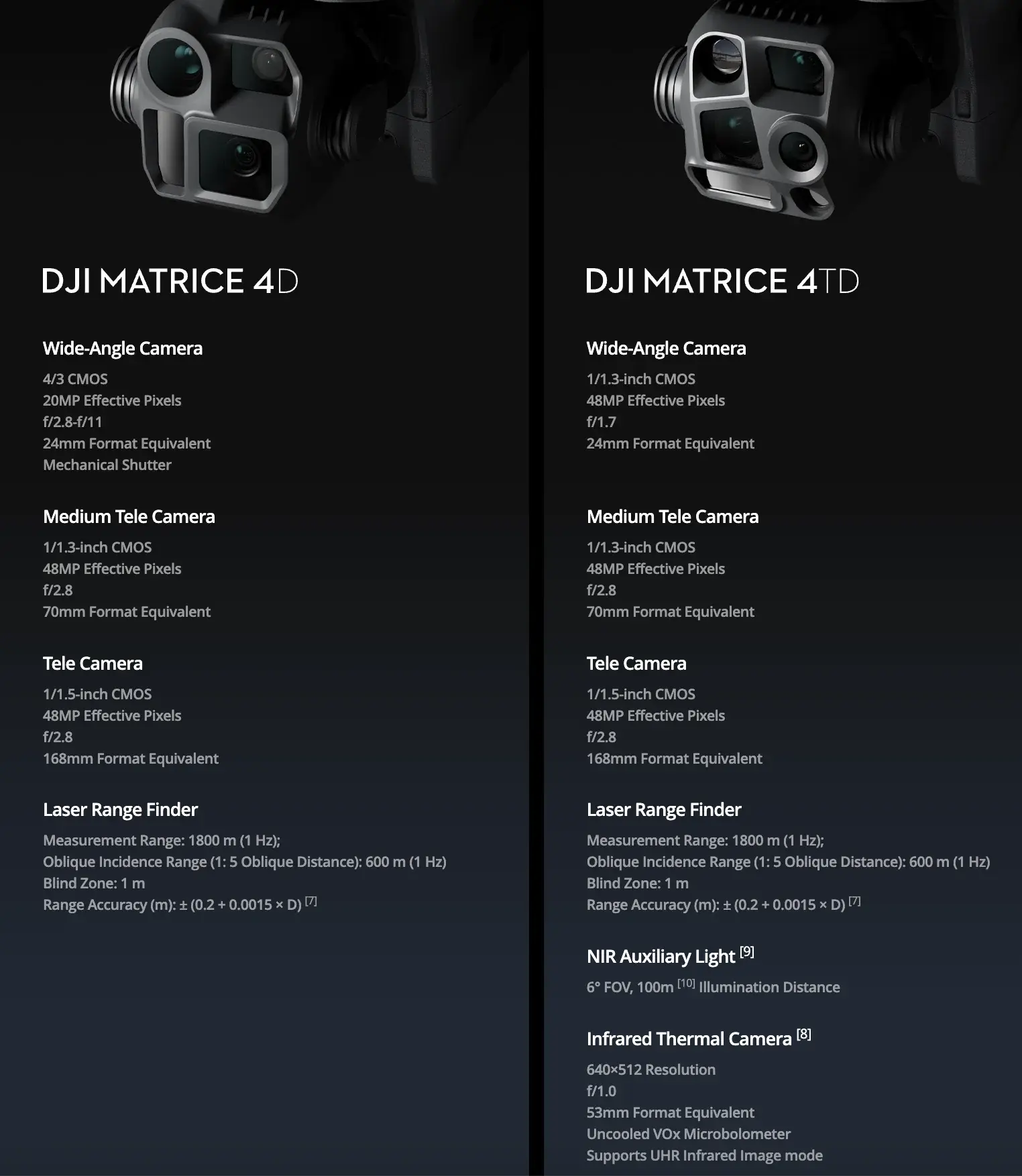

Image Sensor DJI Matrice 4D: Wide-Angle Camera: 4/3 CMOS, Effective Pixels: 20 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP DJI Matrice 4TD: Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP

Lens Wide-Angle Camera DJI Matrice 4D FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞ DJI Matrice 4TD FOV: 82° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.8 Focus: 3 m to ∞ Tele Camera FOV: 15° Format Equivalent: 168 mm Aperture: f/2.8 Focus: 3 m to ∞

ISO Range Normal Mode: ISO 100-25600 Night Scene Mode: Matrice 4D Wide-Angle Camera: ISO 100-204800 Medium Tele Camera: ISO 100-409600 Tele camera: ISO 100-409600 Matrice 4TD Wide-Angle Camera: ISO 100-409600 Medium Tele Camera: ISO 100-409600 Tele Camera: ISO 100-819200

Shutter Speed DJI Matrice 4D Wide-Angle Camera: Electronic Shutter: 2-1/8000 s Mechanical Shutter: 2-1/2000 s Medium Tele Camera: 2-1/8000 s Tele Camera: 2-1/8000 s DJI Matrice 4TD 2-1/8000 s

Max Image Size DJI Matrice 4D Wide-Angle Camera: 5280×3956 Medium Tele Camera: 8064×6048 Tele Camera: 8192×6144 DJI Matrice 4TD Wide-Angle Camera: 8064×6048 Medium Tele Camera: 8064×6048 Tele Camera: 8192×6144

Still Photography Modes DJI Matrice 4D Wide-Angle Camera: Single: 20 MP Timed: 20 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s JPEG + RAW: 2/3/5/7/10/15/20/30/60 s Smart Capture: 20 MP Panorama: 20 MP (raw image); 100 MP (stitched image) Medium Tele Camera: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP Tele Camera: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP DJI Matrice 4TD Wide-Angle Camera: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP Panorama: 12 MP (raw image); 100 MP (stitched image) Medium Tele Camera: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP Tele Camera: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture:12MP
